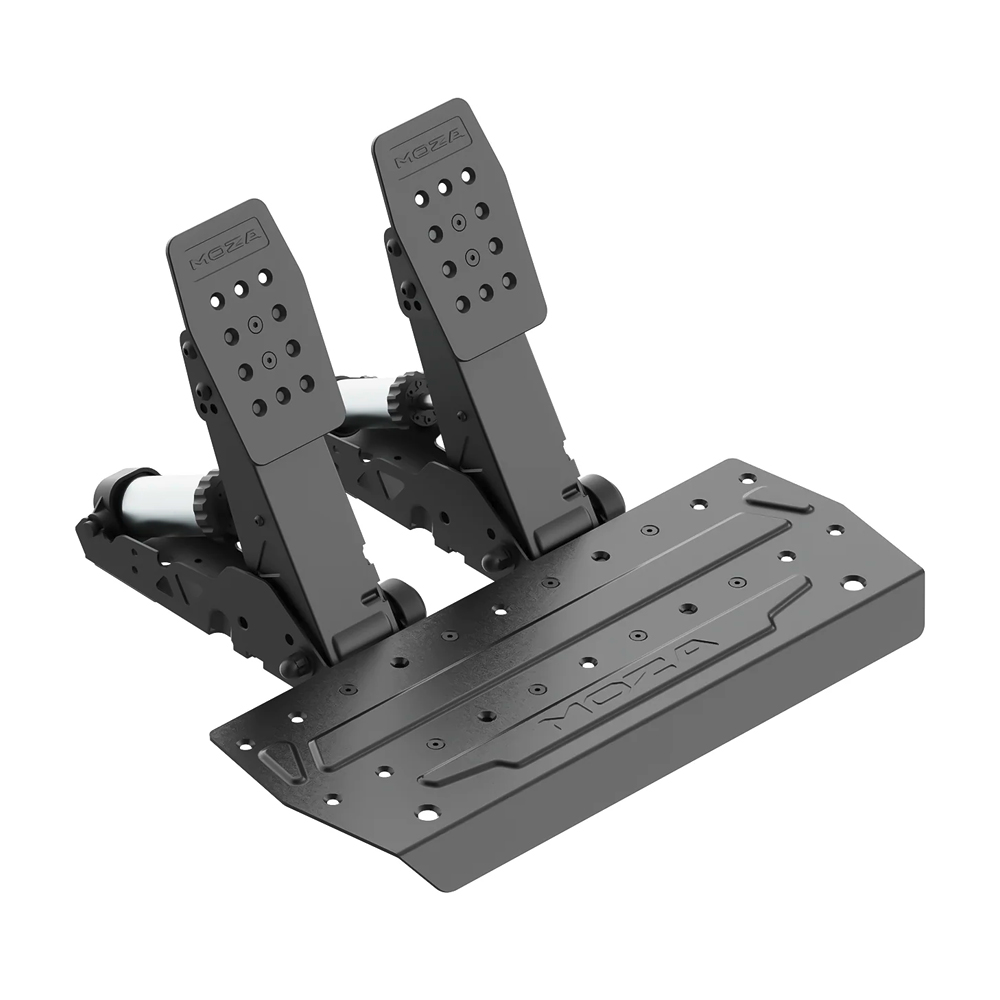

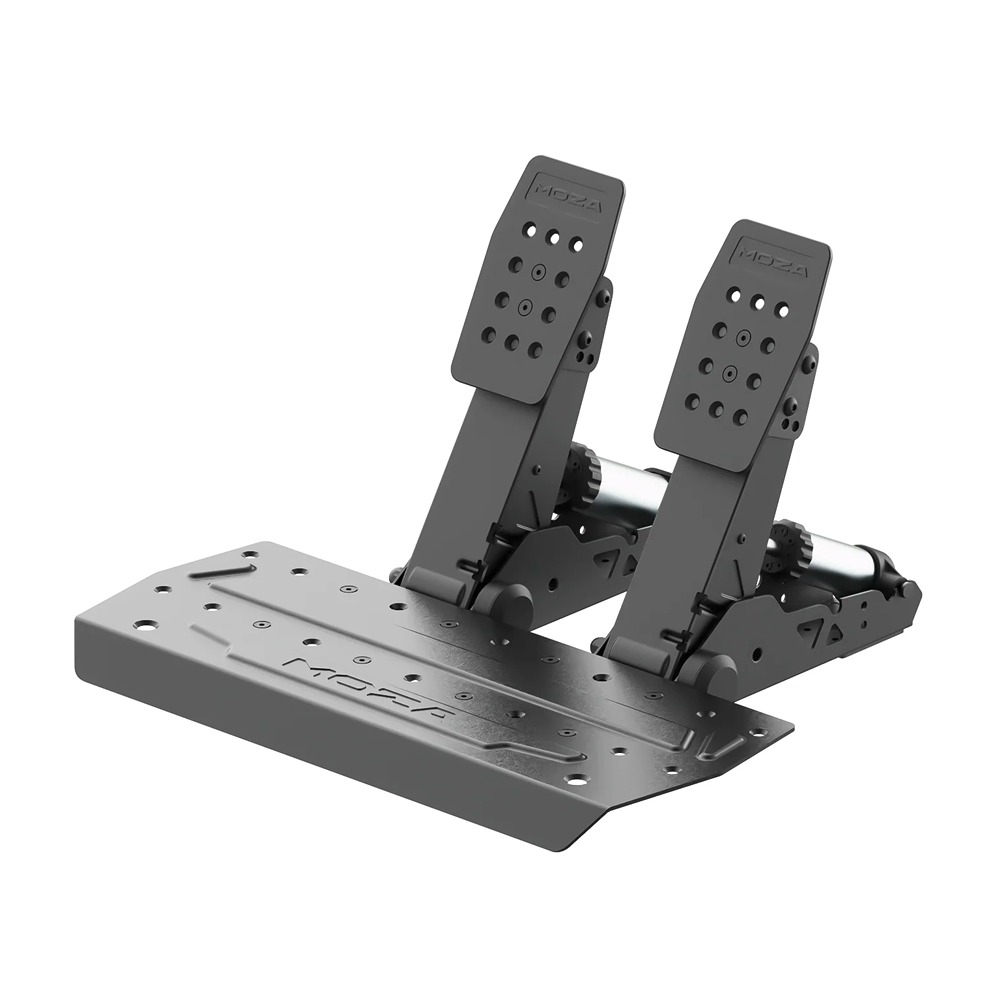

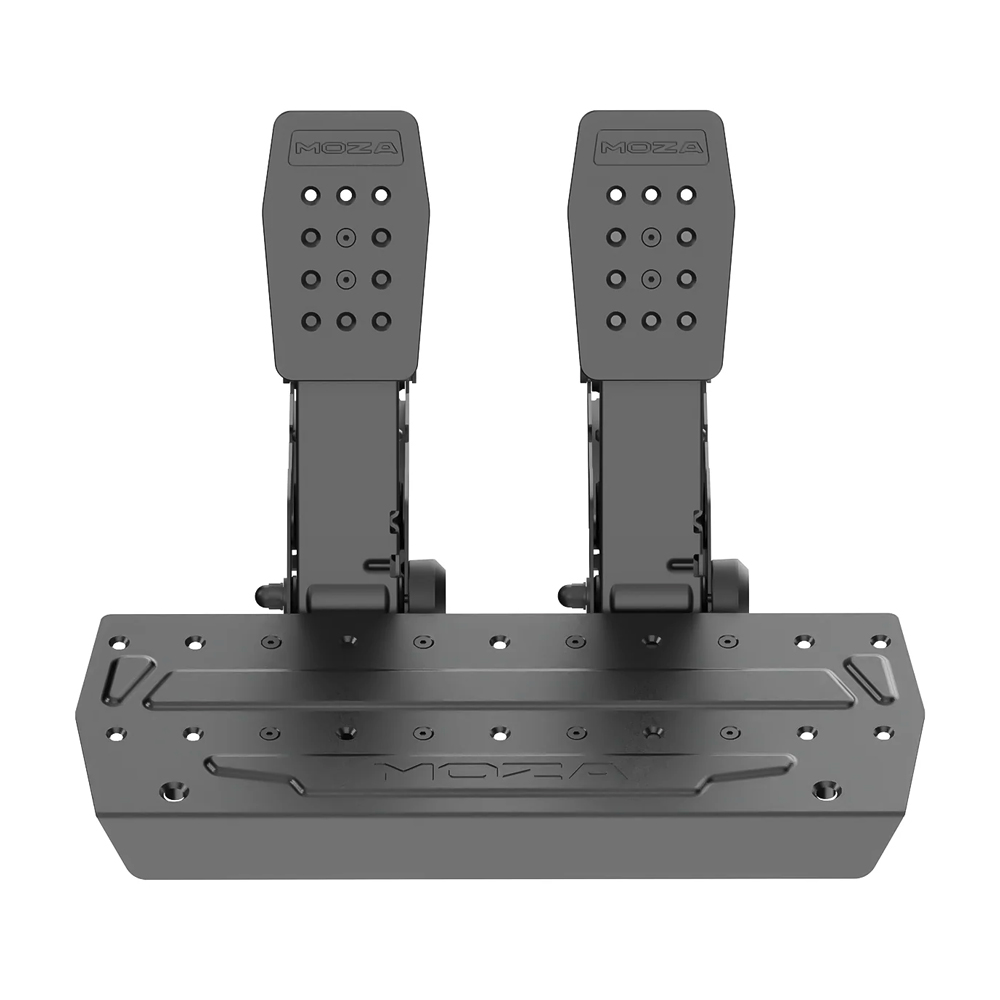

MOZA® SRP2 Brake & Throttle

The MOZA SRP2 Brake & Throttle pedals provide you with a precise, customizable pedal feel for ambitious sim racing. With a 100 kg load cell brake, high-precision 15-bit angle sensor, robust aluminum construction and numerous adjustment options, you can adapt the brake feel, position and ergonomics exactly to your setup. This gives you more control, more consistency and a noticeably more realistic driving experience.

Official Premium Partner Official European partner of MOZA®

Authorized Tech Partner In-depth technical understanding of hardware

Expert Consultation From sim racers for sim racers – even after purchase

Features

Precise 100 kg load-cell brake
Combined sensor technology for precise inputs
Individually adjustable braking feel
Adjustable pedal position and ergonomics
Quick and tool-free adjustment
Compatible with PC and Xbox

Precise brake control with realistic feedback

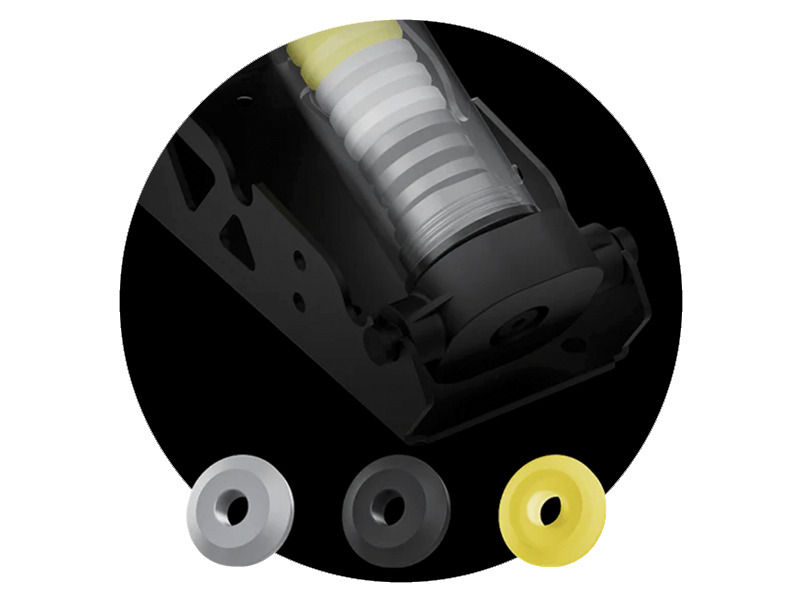

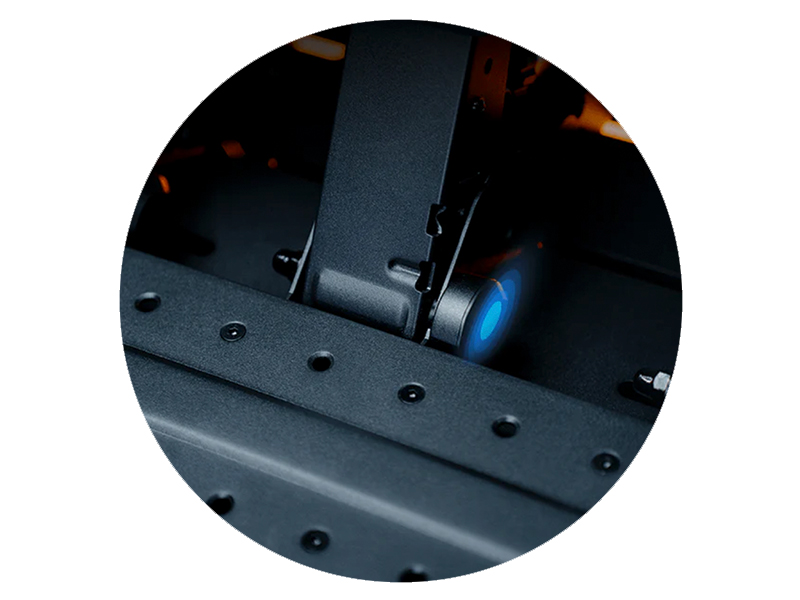

The MOZA SRP2 relies on a high-precision 100 kg load cell for the brakes, which allows you to apply the braking force cleanly and directly. The system also works with a 15-bit angle sensor and sensor fusion, which means that your inputs are recorded even more precisely and you can make better use of your muscle memory when braking. Even in the standard setup, the elastomer and spring construction with 60R, 70R and 80P elements gives you a total of 25 different braking characteristics, allowing you to adjust the pedal feel from softer to significantly firmer.

Extensively adjustable for more ergonomics in the setup

The pedal angle can be adjusted by up to 25° so that the pedals fit your riding position and rig perfectly. The distance between the pedals can also be adjusted via the mounting position, with a fine lateral adjustment of ±15 mm possible. In addition, the pedal height can be adjusted individually and offers you an adjustment range of 36 mm. Especially for desktop setups, the geometry is deliberately designed for a natural foot and seat position so that you can ride comfortably and in control even during longer sessions.

Robust materials and particularly smooth running

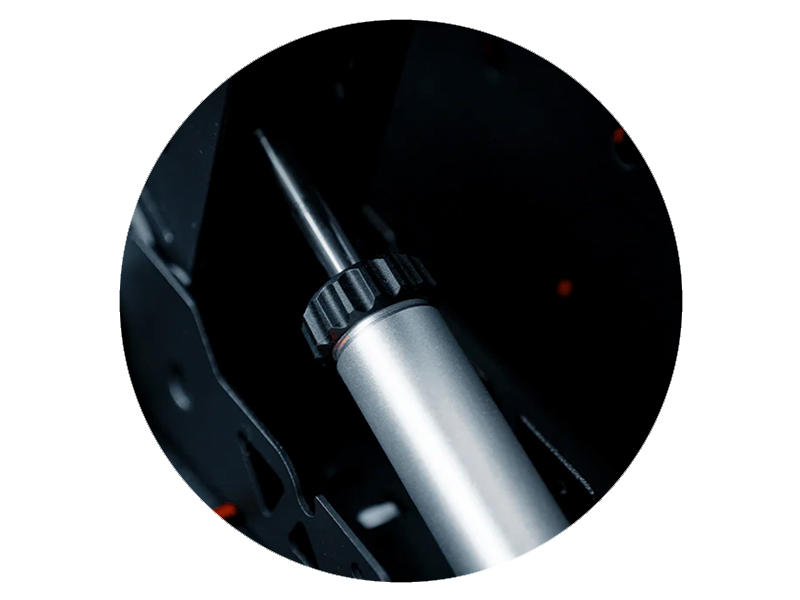

MOZA uses aerospace-grade aluminium for the construction, which is CNC-machined and anodized for greater durability. The base and the pedal linkages are also made of high-strength steel to ensure that the system remains stable even under high loads. The accelerator and clutch pedals feature an encapsulated spring design with a guide rod and two-stage adjustable preload, allowing the pedal feel to be adjusted quickly. At the same time, the closed movement structure, polished steel shafts and softly damped stops ensure a particularly smooth, quiet and even pedal stroke.

Flexible system with software and expansion options

The MOZA SRP2 can be extensively tuned not only mechanically, but also via software. Via MOZA Pit House, you can monitor pedal travel, adjust output curves and read out live data in real time to adjust the behavior precisely to the vehicle and riding style. Changes to the pedal force can be made directly by hand without tools. For even more individualization, an optional performance kit is available, which contains additional springs, elastomers and metal blocks and extends the number of possible brake settings to over 1,000. The pedals are also compatible with PC and Xbox, can be used directly on the PC via USB or, together with the Xbox-compatible ESX steering wheel, can also be used on Xbox.

Specifications

Weight	6 kg
Brand	MOZA®
Platform	PC, Xbox Ready
Pedal material	High-strength steel
Base material	High-strength steel
Load cell area	0-100 kg
Brake sensor method	Hybrid of load cell and angle sensor
Resolution of the angle sensor	15-bit (32,768 PPR)
Adjustability of the brake feel	Supported by replacing the two elastomer sets included or with the optional kit
Adjustability of the gas pedal pedal	2-stage preload adjustment
Adjustability of the clutch	2-stage preload adjustment
Adjustment range of the pedal angle	10°/25°
Adjustment range left/right	15 mm
Pedal height adjustment range	36 mm
Setting the pedal characteristic	Supported
Real-time display of the pedal output	Supported
Setting the engagement point of the brake pressure	Supported

This product is compatible with PC. Click here for more details.

Dieses Produkt wird kompatibel mit Xbox Systemen wenn kombiniert mit einem Xbox-lizenzierten MOZA® Wheel. Click here for more details.
