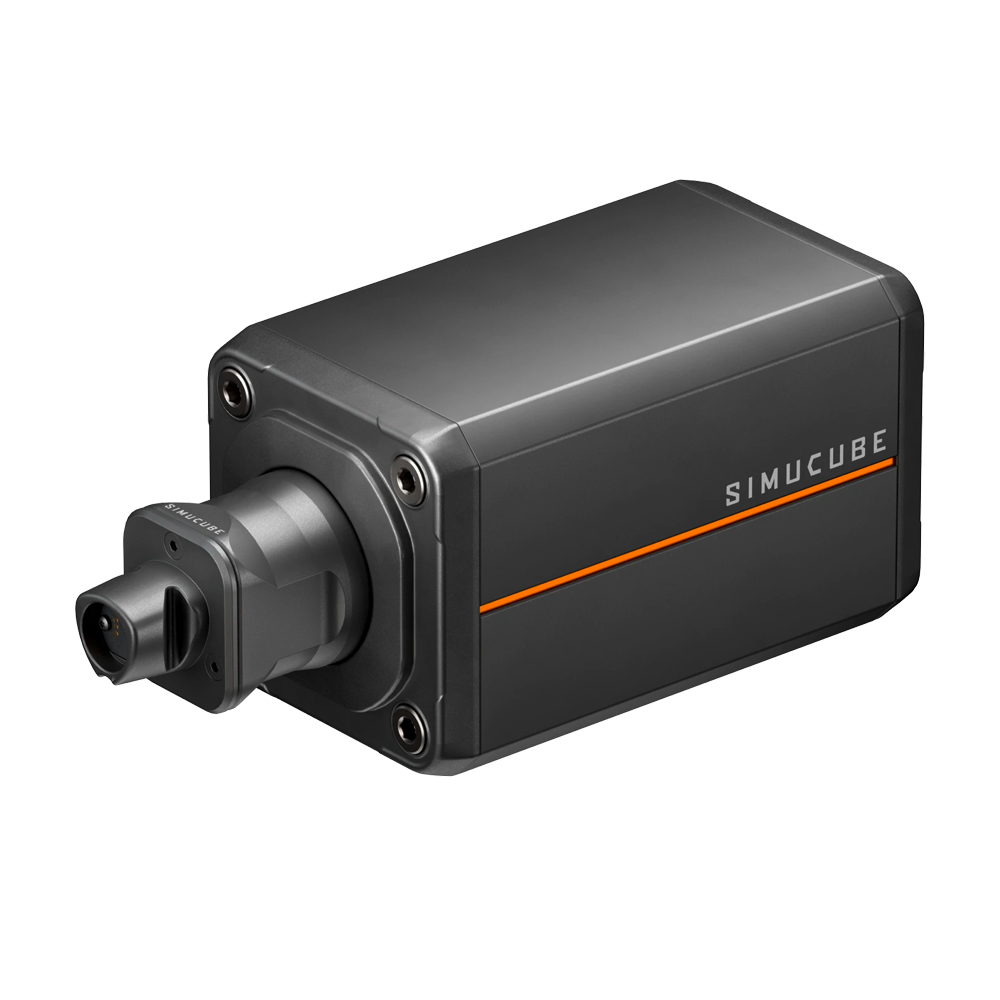

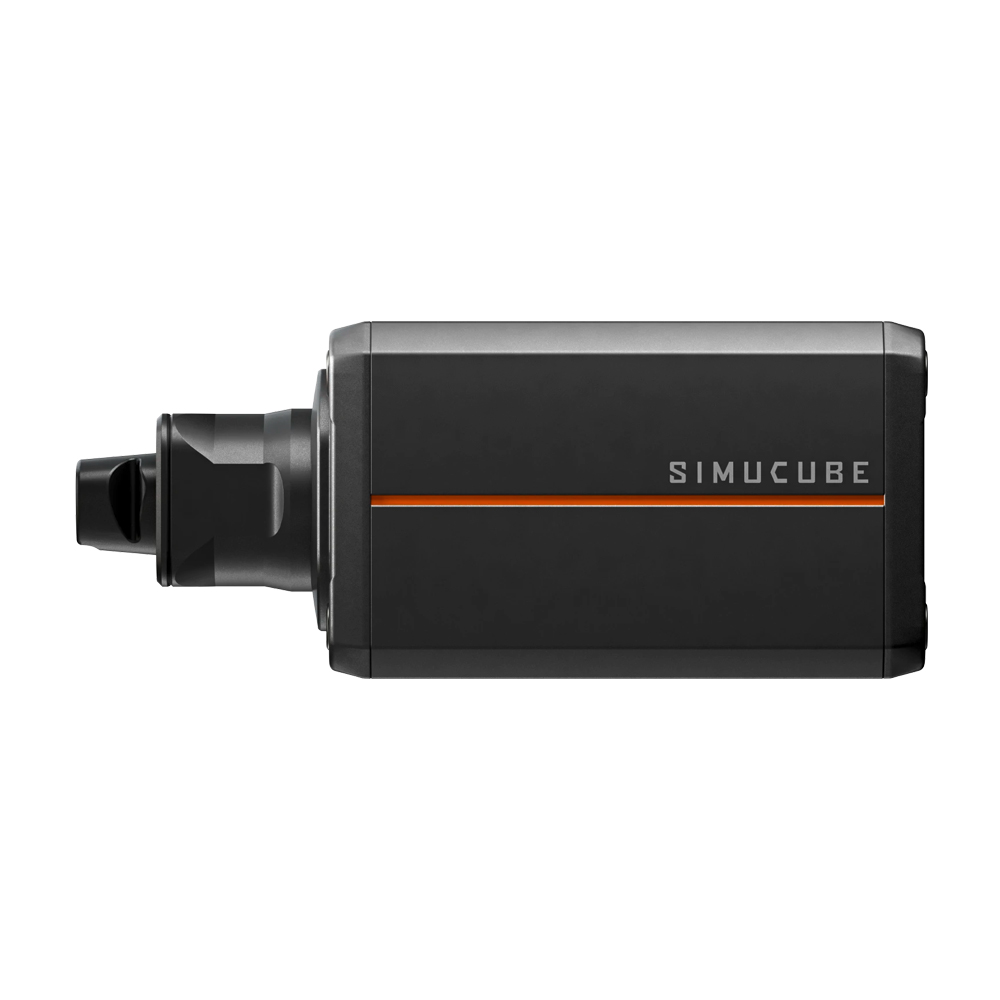

Simucube® 3 Ultimate (35 Nm)

The Simucube 3 Ultimate marks the pinnacle of modern simracing technology. With 35 Nm of torque, a newly developed Spoke-Type IPM motor, a revised force control architecture and a fully integrated Simucube Link system, it offers an unprecedented level of realism, responsiveness and control. Designed for professionals who don't compromise, the Ultimate delivers unparalleled performance, unmatched smoothness and durability that will last a lifetime.

Important Notice: Please note that a Simucube® Link Hub is required to operate Simucube® 3 Wheel Bases. This is not included in the scope of delivery and can be added as an optional add-on.

 3'403,38 incl. VAT

Available from 21.06.2026

Add-ons (optional)

 3'403,38 incl. VAT

Available from 26.06.2026
Expected delivery time: 5 - 9 business days
Specialist Retailer European Simracing Specialist for Simucube®
Authorized Tech Partner In-depth technical understanding of hardware
Expert Consultation From sim racers for sim racers – even after purchase

Features

  • 35 Nm torque — high-end direct dri­ve per­for­mance
  • New Spoke-Type IPM motor with max­i­mum effi­cien­cy
  • Force Recon­struc­tion 3.0 algo­rithm for hyper-real­is­tic feed­back
  • P3G-Poly­gon Quick Release with con­tact­less pow­er and data trans­mis­sion
  • Simu­cube Light­Bridge and Link Hub for cen­tral, wire­less con­nec­tiv­i­ty
  • Extreme­ly qui­et, cool and main­te­nance-free oper­a­tion

A new benchmark in power and precision

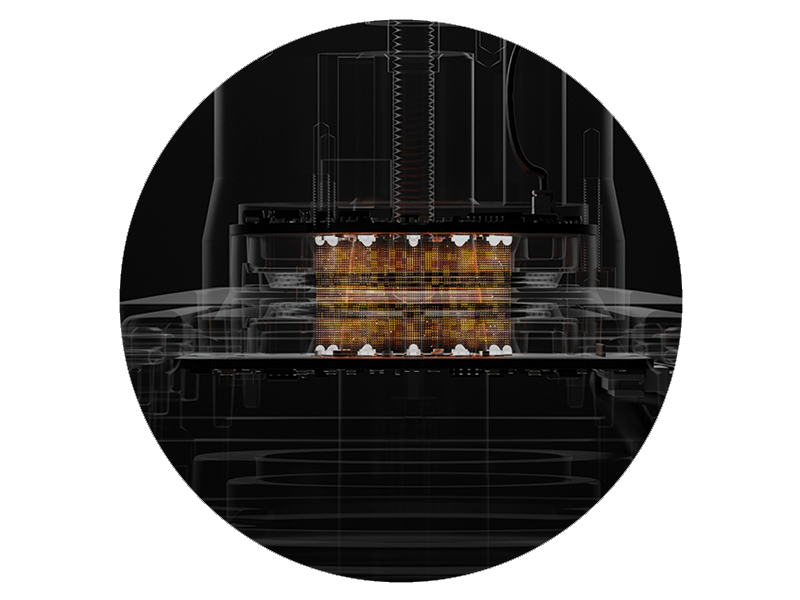

The Simucube 3 Ultimate sets new standards in force feedback technology. Its exclusively developed Spoke-Type IPM motor, inspired by the drive technology of modern high-performance electric vehicles, generates a particularly dense magnetic field. This creates a stronger, more direct and at the same time more efficient torque of up to 35 Nm. Combined with Force Reconstruction 3.0 and the individual laser calibration of each unit, the result is force feedback that is more realistic, consistent and sensitive than ever before - perfect for drivers who want to feel every nuance of the track.

Perfection through engineering

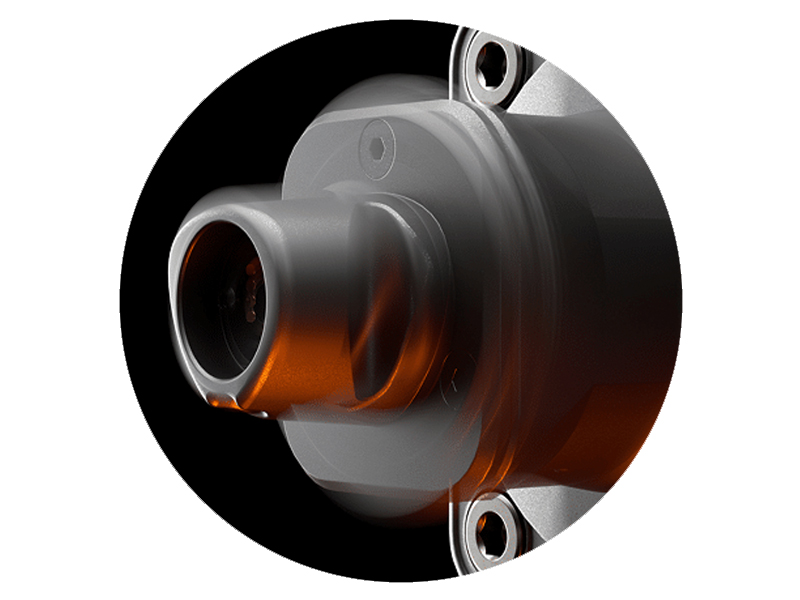

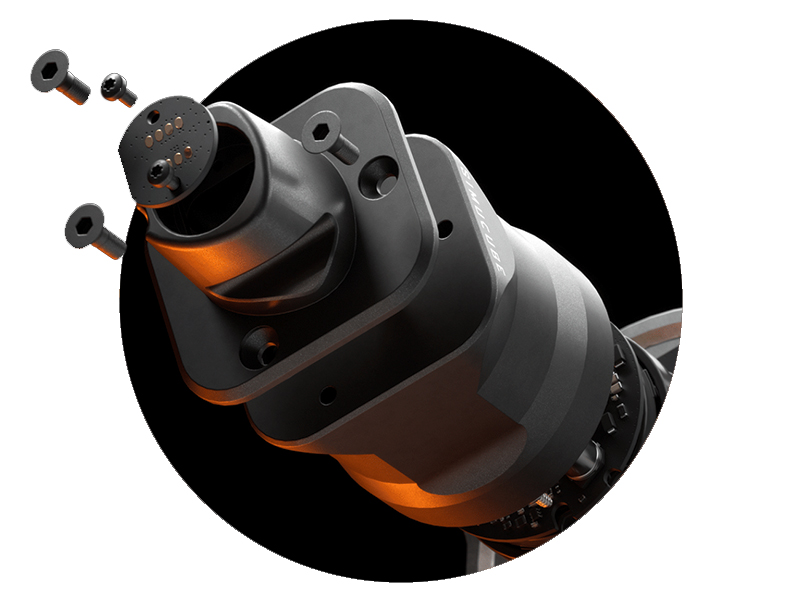

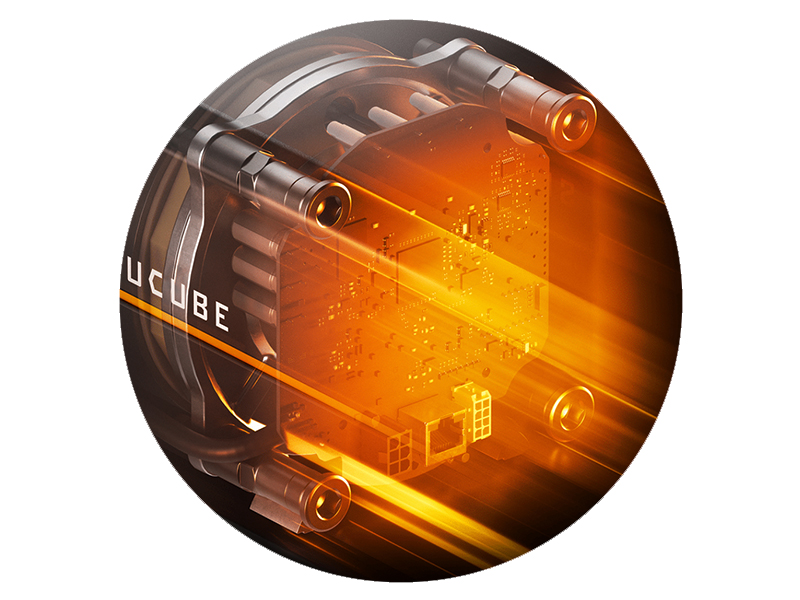

The Simucube 3 Ultimate embodies pure technical precision. The CNC-milled aluminum housing protects the sophisticated electronics and ensures maximum stability even under the most extreme loads. The new Simucube Link Quick Release with P3G polygon technology ensures a backlash-free, self-centering connection - ideal for instant wheel changes without compromising stiffness or accuracy. The integrated Simucube LightBridge system transmits power and data wear-free, contactless and with absolute reliability - a design that has been specially developed to meet the requirements of professional Simracers.

Consistency, durability and control at the highest level

The Simucube 3 Ultimate was created to guarantee constant performance over thousands of racing hours. Thanks to the energy-efficient motor and intelligent temperature control, it remains cool, quiet and evenly powerful, even under continuous load. The force feedback remains identical over long stints - perfect for training muscle memory and precision. The robust construction of industrial-grade components ensures maintenance-free operation and an exceptionally long service life - in line with the principle: Industrial Grade, Built for Life.

Future-proof simracing ecosystem

With the Simucube Link Hub and the extended Simucube Link ecosystem, the Ultimate is ready for the next generation of simracing hardware. All devices - from steering wheels to pedals and dashboards - communicate via a single, secure connection system. Power and data transfer are centralized, interference-free and wireless. Manufacturers such as Ascher Racing, GSI, Delta Sim Tech, P1Sim, SimCore and Lovely Sim Racing already support the system. The Simucube Control Panel allows you to adjust all settings live in the race - without interrupting your driving experience.
Specifications
Weight 15,7 kg
Dimensions 38,6 × 29,6 × 19,7 cm
Brand

Simucube®

Platform

PC

Peak torque

Over 20 Nm

Motor

Maximum reaction speed, direct-drive, optimized IPM motor

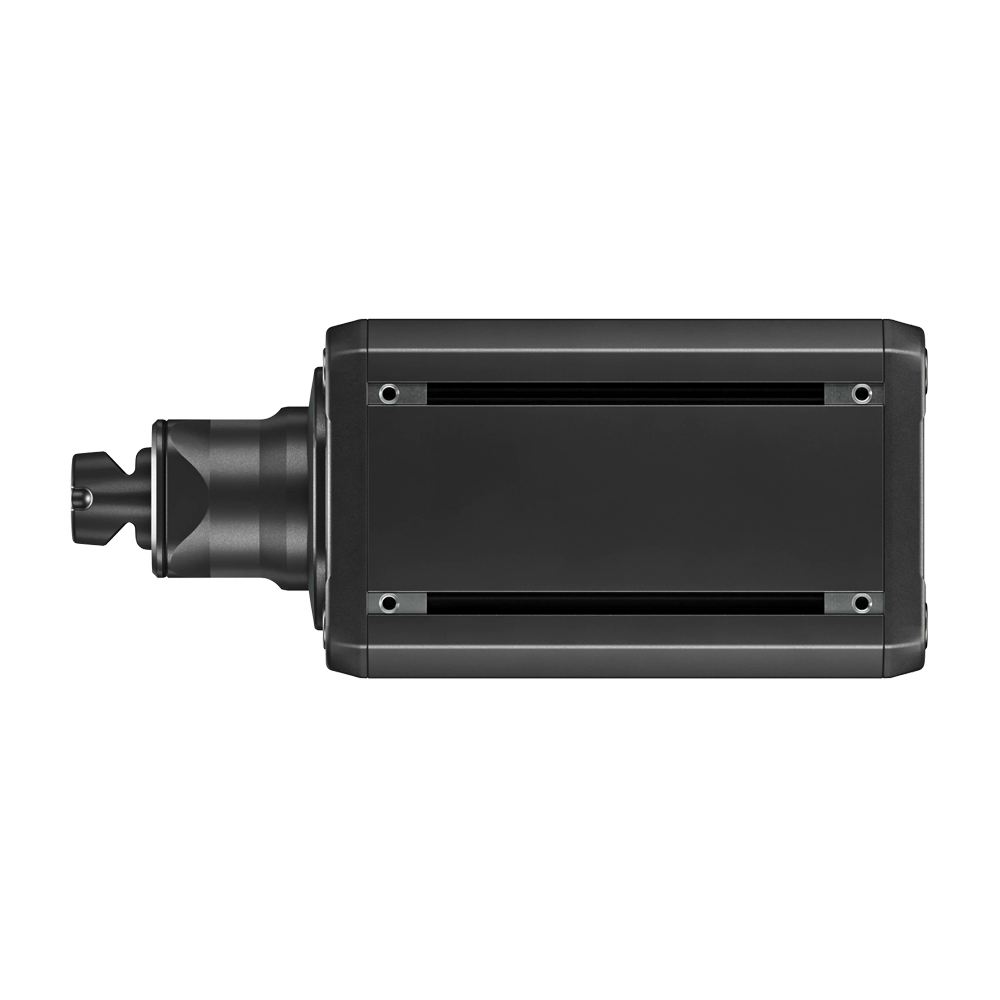

Mounting holes

Front and underside

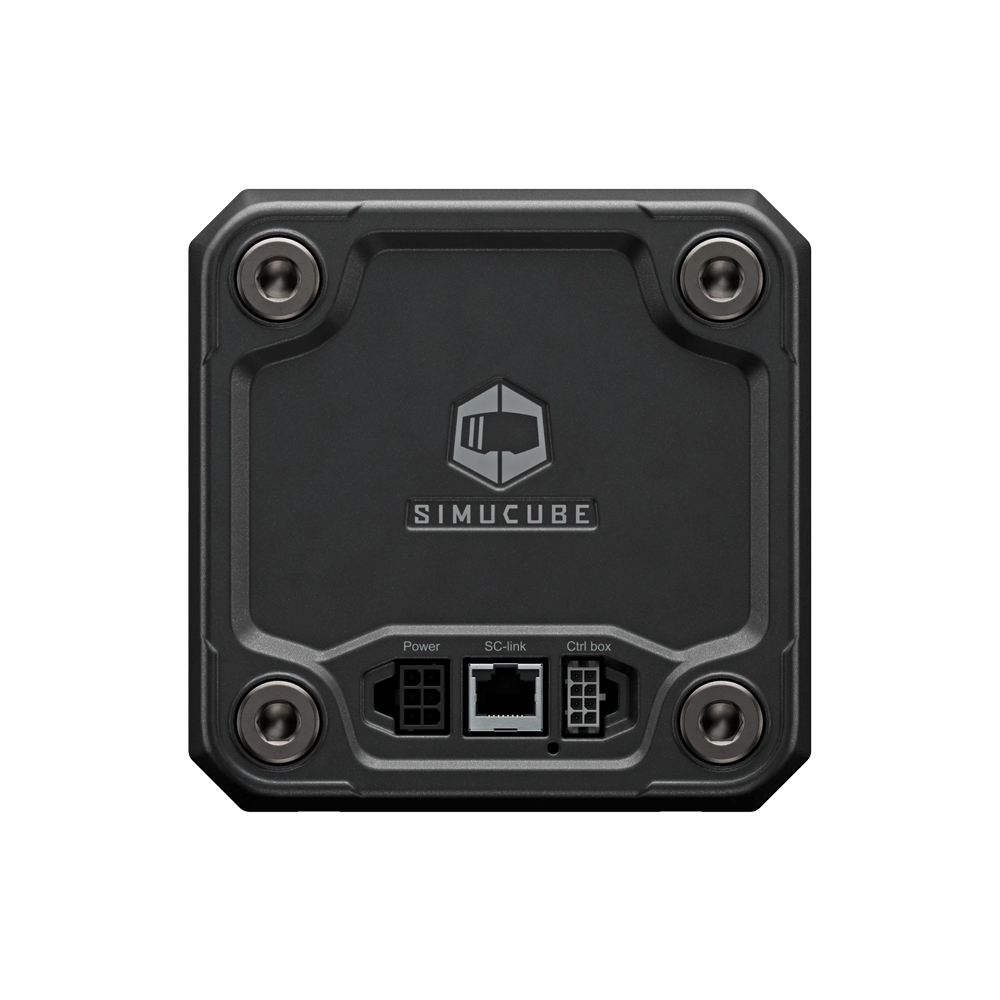

Power supply

360 W (450 W peak power)

Angle sensor

23 bit absolute (8 million steps)

Product size

135 x 135 x 23 (incl. Quick Release)

Product weight

11 kg

Kontrolbox

Included

PC BadgeThis product is compatible with PC. Click here for more details.
What's in the box
  • 1 x Simu­cube 3 Ulti­mate
  • 1 x pow­er sup­ply unit
  • 1 x RJ45 cable
  • 1 x pow­er cable
  • 1 x Quick start guide
  • 1 x con­trol box
  • 1 x mount­ing kit
Warranty

We pro­vide a 2‑year war­ran­ty on this prod­uct. Dur­ing this peri­od, we will repair any mate­r­i­al or man­u­fac­tur­ing defects free of charge. If a defect occurs, sim­ply con­tact our Tech­ni­cal Sup­port – we will take care of the repair or replace­ment quick­ly and with­out has­sle.

Shipping

All prod­ucts are dis­patched direct­ly from our own EU ware­house in Baden-Würt­tem­berg, Ger­many. As a rule, ship­ments are made via FedEx or GLS.

The esti­mat­ed deliv­ery time for each prod­uct can be found under the “Add to cart” but­ton. The esti­mat­ed deliv­ery date for your entire order will be dis­played in your bas­ket before you com­plete the pay­ment process. Work­ing days are Mon­day to Fri­day.
