Conspit® Ares CDP Wheel Base (12 Nm)

Name: Conspit® Ares CDP Wheel Base (12 Nm)
SKU: SU-CP101
Availability: InStock

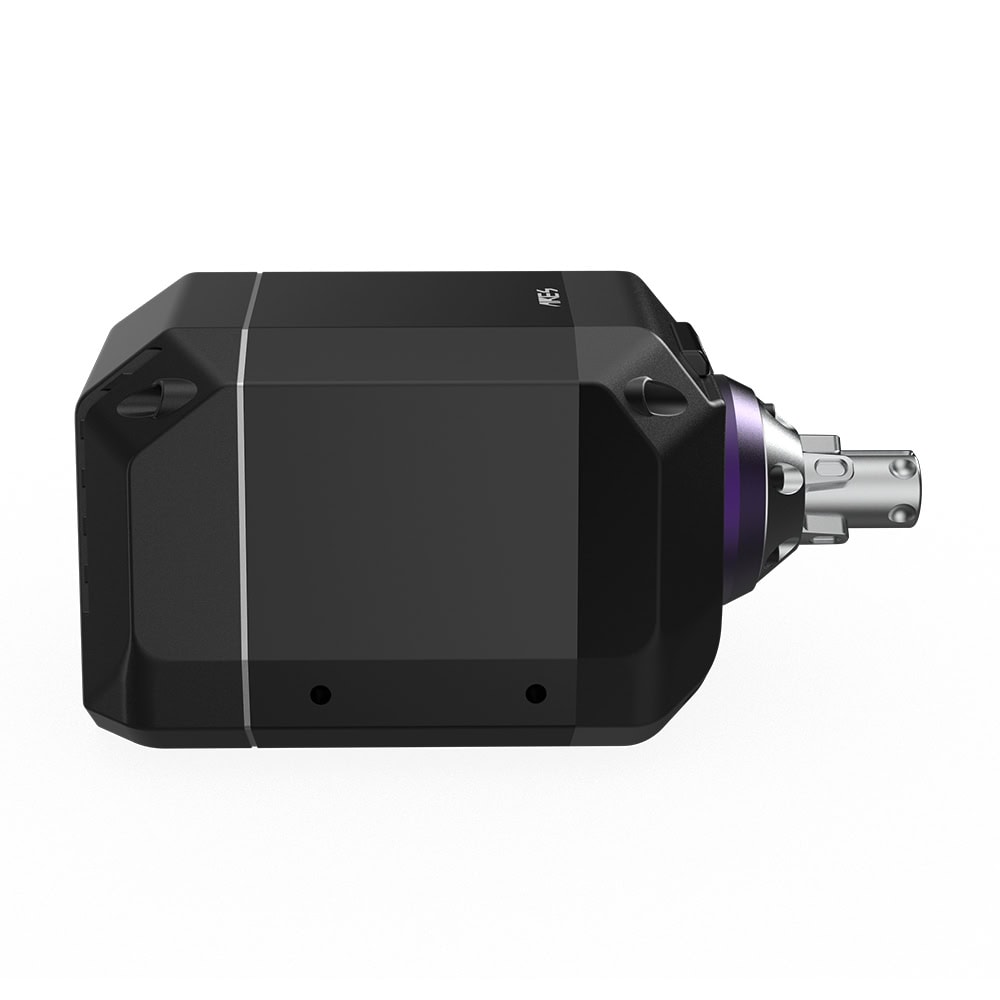

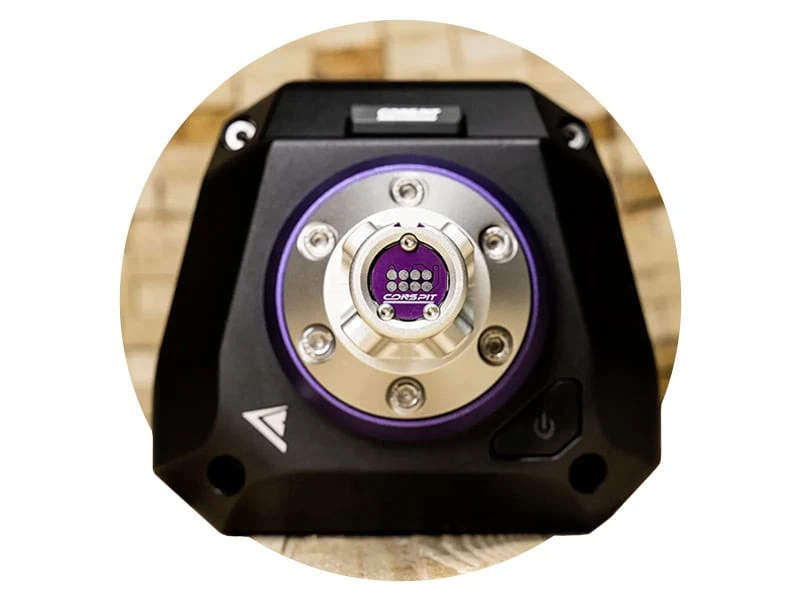

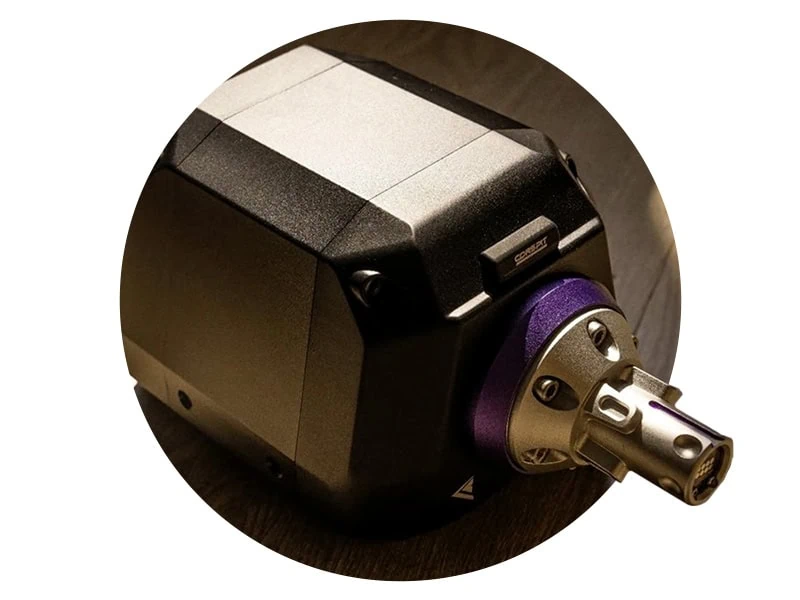

The Conspit Ares Wheel Base (12 Nm) is designed for sim racers looking for an unparalleled racing experience. Equipped with a high-precision helical-pole direct-drive motor designed specifically for simracing and a deeply optimized force feedback system, it offers a realistic driving experience with detailed haptic feedback. This wheel base combines performance and control at the highest level, giving you the upper hand in any racing situation.

€ 589,00 incl. VAT

In stock

Official Premium Partner Official European partner of Conspit®

Authorized Tech Partner In-depth technical understanding of hardware

Expert Consultation From sim racers for sim racers – even after purchase

Features

Inclined pole direct drive motor
12 Nm/ms Torque response
23-bit optical encoder
Aluminum housing in aviation quality
Dual-processor architecture
Real-time heat management

Superior performance and precise control

The Conspit Ares Series Wheel Base utilizes asymmetric dual 170MHz + 168MHz processors to ensure efficient and stable computation. The direct drive uses industry-leading high-precision optical encoders with an angular resolution of less than 0.01° and a bit resolution of 23 bits, accurately capturing every tiny steering movement. With a torque of up to 12 Nm/ms, the system perfectly displays every detail of the force feedback. Thanks to the collaboration with Open FFBoard and continuous optimization by professional racing drivers and vehicle dynamics engineers, the force feedback system delivers a simulation that accurately reproduces real vehicle dynamics and road details.

Specialized motor technology and innovative design

Unlike competitors using industrial servo motors, the Ares Base motor has been designed from the ground up specifically for the requirements of simracing. The dual skew pole design of the stator and rotor significantly reduces torque ripple, resulting in less electromagnetic vibration and noise. The ultra-high torque density, achieved through the use of high magnetic cores and powerful NdFeB magnets, ensures a compact size with impressive performance. Advanced thermal management monitors the system temperature in real time and ensures stable operating conditions, even during intense long-distance racing. The innovative high-grade aluminum design and efficient heat dissipation make this wheel base not only functional but also visually appealing.

Specifications

Weight	10 kg
Dimensions	42,5 × 34,5 × 25 cm
Brand	Conspit®
Platform	PC
Peak torque	10 - 15 Nm
Rotary encoder	High-precision optical encoder
Resolution	23 Bit
Quick Release	Conspit CDP Quick Release
Mounting holes	M6 x 4 (bottom), M8 x 4 (sides)
Connectivity	USB
Product size	134 x 150 x 269 mm
Product weight	5.6 kg
Motor	Two-pole motor with inclined pole
Emergency stop switch	Optional

This product is compatible with PC. Click here for more details.

Manual

Download Center

Warranty

We provide a 2‑year warranty on this product. During this period, we will repair any material or manufacturing defects free of charge. If a defect occurs, simply contact our Technical Support – we will take care of the repair or replacement quickly and without hassle.
